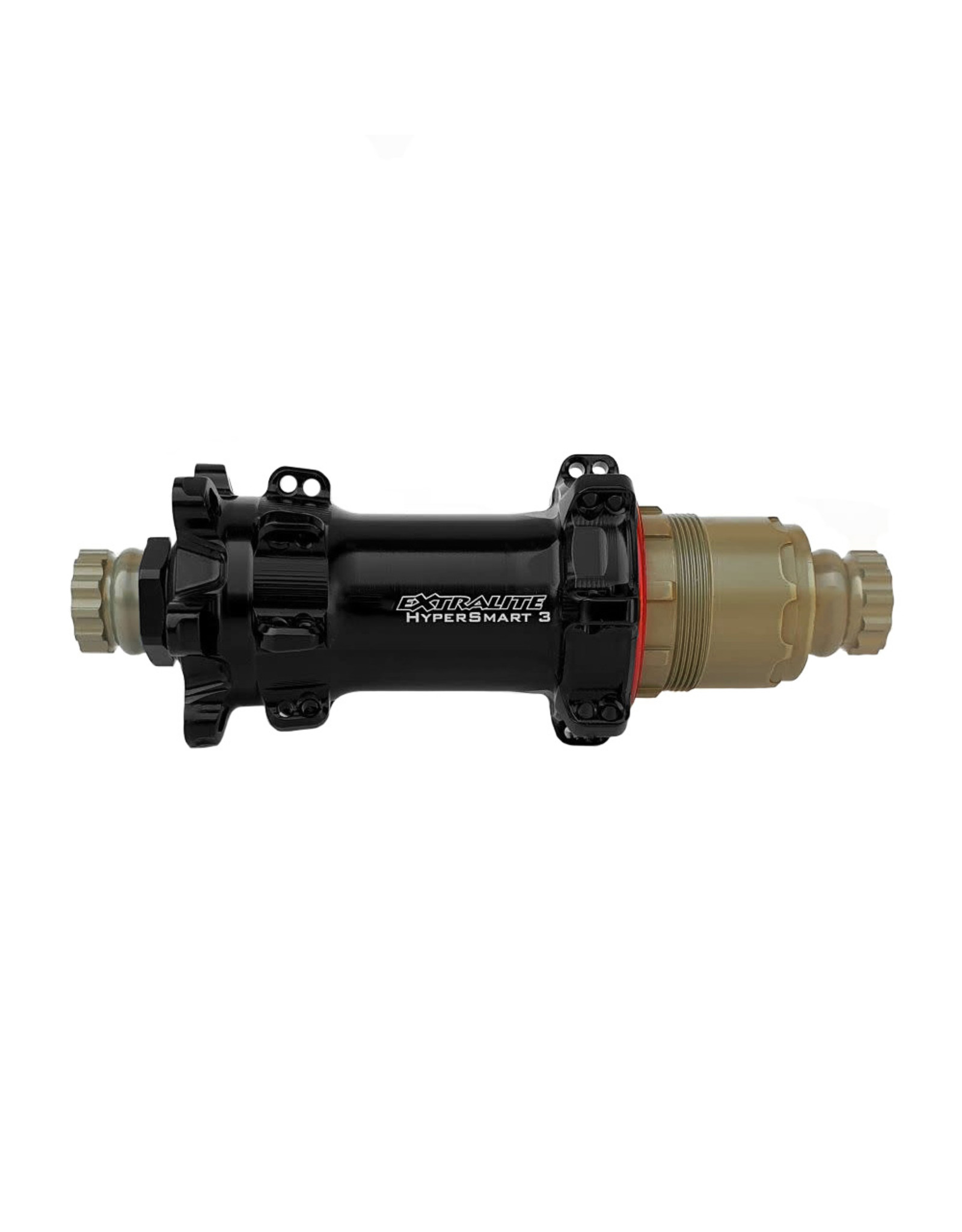

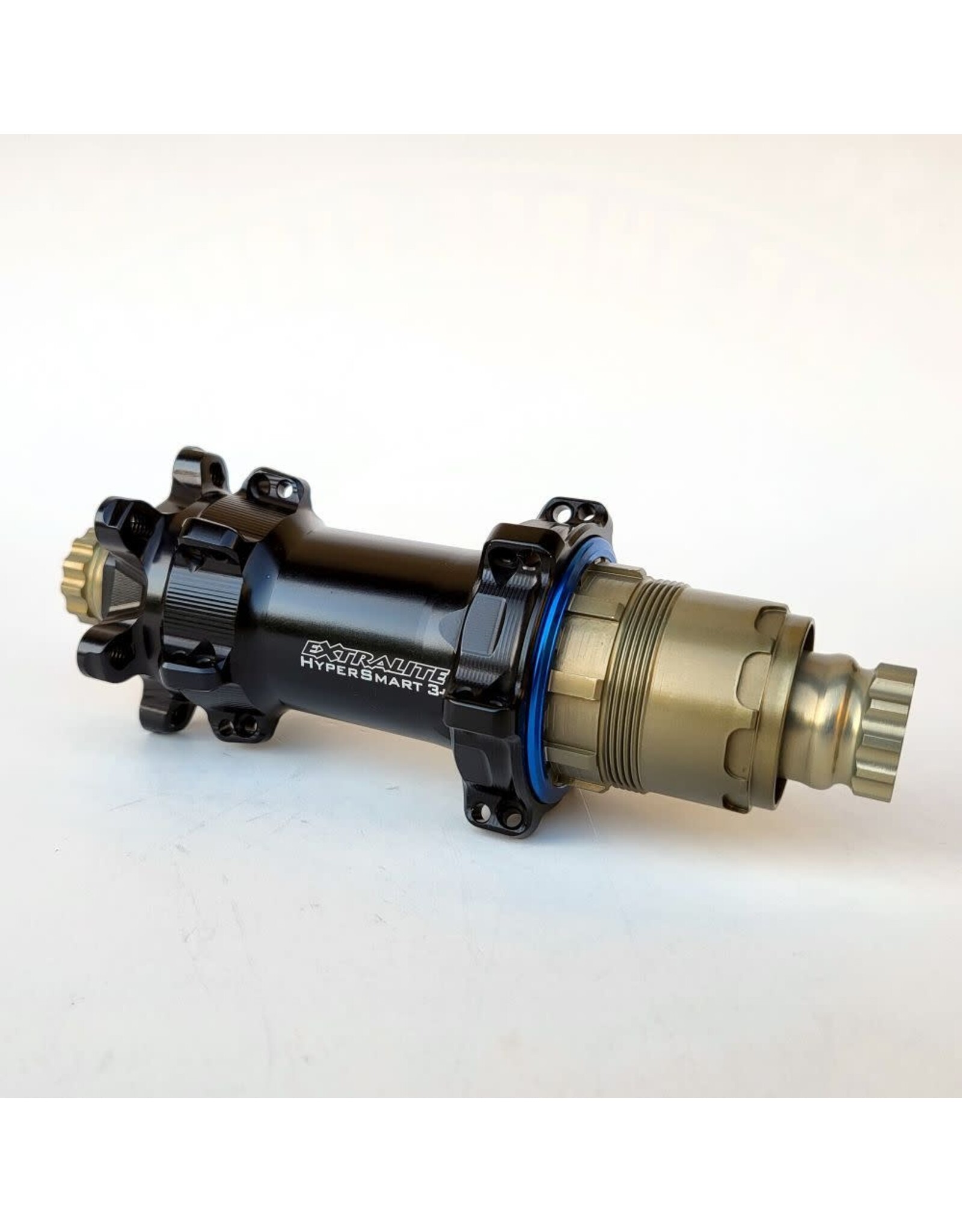

Extralite HyperSmart 3+ Rear Disc Brake Hub
| Article number: | 019-01-05 |
| Availability: | Out of stock |
The HyperSmart 3+ rear hub from Extralite is a lightweight, high-performance hub for mountain and gravel bikes, weighing just 145 grams. It features a 7075 aluminum shell and a 17mm oversized axle for stiffness. High-quality stainless steel bearings with low-friction seals ensure smoothness. The floating-ring engagement mechanism is refined for better response and reduced noise. It offers 24 or 28 hole drillings and compatibility with Shimano and SRAM drivetrains. Extralite's precision and attention to detail make this hub both lightweight and dependable.
SERVICE
Due to the lightweight construction of Extralite hubs, it is recommended that service be performed at frequent intervals to ensure proper function and the longest possible wear life of the internal components. Detailed service instructions can be found here. We recommend Extralite's Alugrease or Buzzy's Slick Honey for proper and effective lubrication of the seals and freehub mechanism.
WHEEL BUILDING
Trust a skilled wheelbuilder for Extralite hubbed wheels. We offer expert service and rim/spoke advice. Contact us for custom wheels.
| Weight | ~145g |
| Spoke Holes | 24h / 28h |
| Axle Standard | 12 x 142 mm |
| Bearing Size | 6903 - (1)* / 6803 - (1)* |
| Brake Interface | 6-Bolt |
| *Can be ordered with either XD15 Ceramic, HDC Ceramic, or 440c Stainless Bearings | |
| HyperSmart Freehub Options / Engagement | |
| R O A D | |
| Shimano | Shimano 11Spd - 48t |
| SRAM | XDR - 48t |

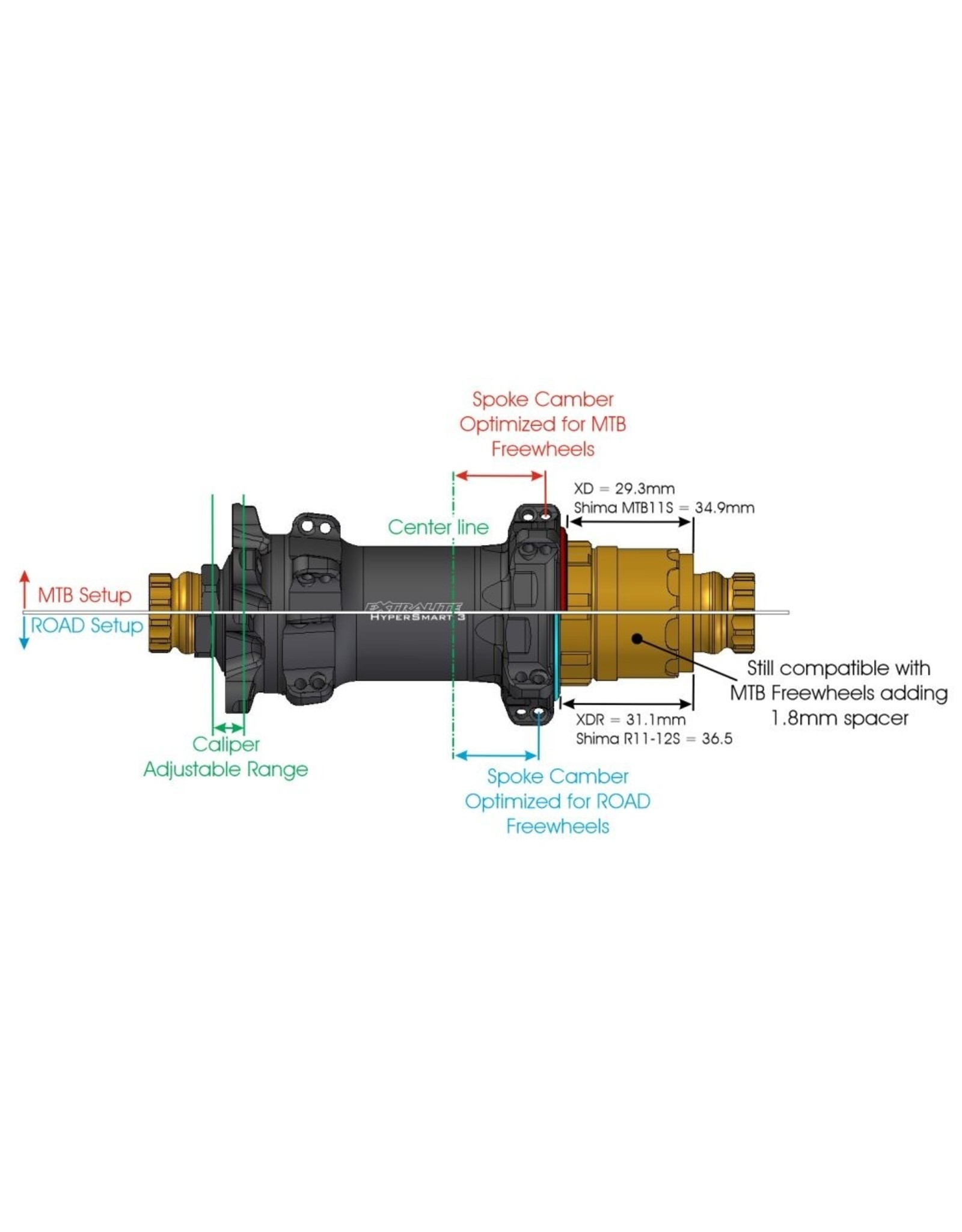

| -- Wheel Building Dimensions -- | ||
| LEFT | RIGHT | |
| Flange Diameter | 42.0 mm | 48.0 mm |
| Center to Flange | 32.0 mm | 22.0 mm |
| Spoke Hole Offset | 1.5 mm | |
| Spoke Hole Diameter | 2.8 mm | |
| *for accurate spoke lengths, please use Extralite's Hyper hub Lacing Instructions | ||
| Compare | ||
| HyperSmart | DT Swiss 180 | |
| Weight | ~145g | ~189g |
| Spoke Holes | 24h / 28h | 24h |
| Axle Standard | 12 x 142 mm | 12 x 142 mm |
| Bearing Size | 6903 - (1)* / 6803 - (1)* | Ceramic 6802 - (1) / 1526 - (1) |
| Brake Interface | 6-Bolt | Centerlock |
| *Can be ordered with either XD15 Ceramic, HDC Ceramic, or 440c Stainless Bearings | ||
| HyperSmart Freehub Options / Engagement | ||
| R O A D | M T B | |
| Shimano | Shimano 11Spd - 48t | Shimano MicroSpline - 36t / 48t |
| Shimano MTB 10 / 11 - 36t | ||
| SRAM | XDR - 48t | XD - 36t / 48t |
| -- Wheel Building Dimensions -- | ||
| LEFT | RIGHT | |
| Flange Diameter | 42.0 mm | 48.0 mm |
| Center to Flange | 32.0 mm | 22.0 mm |
| Spoke Hole Offset | 1.5 mm | |
| Spoke Hole Diameter | 2.8 mm | |
| *for accurate spoke lengths, please use Extralite's Hyper hub Lacing Instructions | ||
| ___________________: | ________________________ |
| Spoke Hole: | • 24 / 28 |
| Axle Standard: | • T / A 12 x 142 |
| Hub Interface: | • Straight-Pull |
| Brake Interface: | • 6-Bolt |
| Material: | • 7075 Aluminum |
